I just recently purchased a knitting machine and there was a part in it that needs replacement. However, it was made in the 60s and I can't even figure out the name of the part to try and look it up. Even if I could, I probably couldn't find a replacement. We have a 3d printer and thought about printing a new piece, but we need the 3d render to do that and I'm not very well versed in 3d modeling.

The object itself is pretty small and the shapes seem pretty basic but I just can't figure it out. I am willing to pay if someone would be willing to do it, if they just let me see their prices. I would also be willing to do a trade of art of your character or something. I'm going to leave all the info below. Let me know if you can help and thank you in advance!

The size is approximately 149.2mm by 24.25mm by 4.75mm.

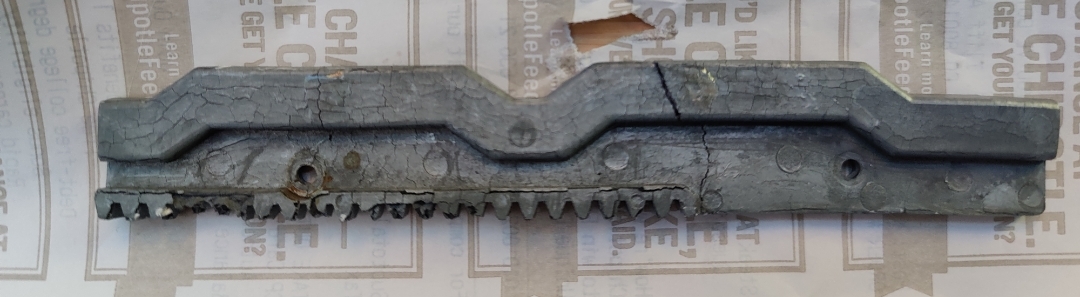

Here are the photos of the top and bottom.


My discord is Callirai#9196 if you want to message me there. And thanks again for anyone who can help. If you can help and you need more sizing info or anything, I can give it.

  • created

    Jan '23
  • last reply

    Feb '23
  • 4

    replies

  • 554

    views

  • 2

    users

  • 3

    likes

  • 1

    link

I can probably help with that! But also if you want to try, blender is free and you can trace images and then extrude the parts of the traced image as high as you need it too be, its kind of tedious and blender can be annoying at times, but its not too hard a task


this is the basic idea, blender isn't the best at constraining images to be specific sizes so you might run into some issues there

I could also model it for you if that doesn't work out

Thank you for the offer but we ended up figuring it out. We just put it all together again and it is working perfectly! My SO ended up spending all day figuring it out in free cad.
